Carbon Fiber Advanced Processing

Key Features of Carbon Fiber:

  • High strength & modulus
  • Corrosion resistant
  • Electrical & thermal conductor
  • Flame resistant
  • UV inert
  • X-Ray Permeable
  • Excellent EMI


FIBER-LINE® Advanced Carbon Fiber processing utilizes the latest technological advancements in fiber handling:

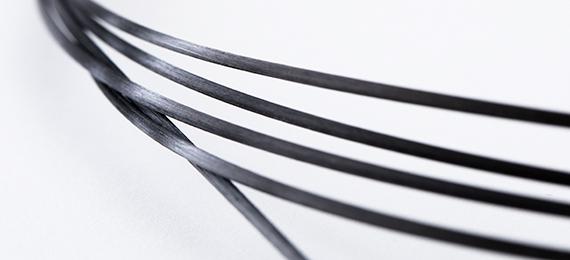

Key Features of Carbon Fiber Twisting

  • FIBER-LINE® is now offering proprietary specialized carbon fiber twisting and plying
  • Specialized equipment designed to carefully handle carbon tows and protect individual filaments.
  • Twisting process can be optimized for increased tensile strength or for flex-fatigue improvement.
  • Twisting carbon tows produces a geometricaly round profile

FIBER-LINE® twisting aligns the filaments in the fiber bundle which enhances processing and increases break strength.

Learn more?

Check out our Twisting page or download the Twisting Guide

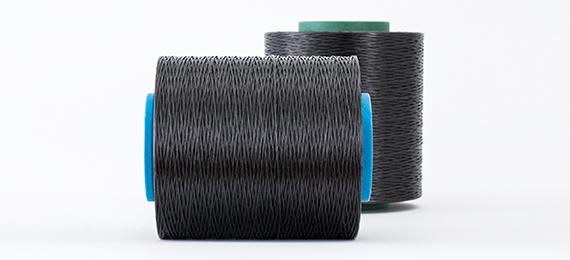

Key Features of Wearcoat™

  • Proprietary coating formulations used to help protect the fibers during further processing
  • Various coating methods allow for precision application of coatings for tight controls & tolerances.
  • Increases durability and abrasion resistance by encapsulating filaments in the fiber bundle
  • Extends the life of the product by reducing the effects of friction and yarn on yarn abrasion
  • Protects the fiber from degradation and filamentation
  • Ideal for high abrasion and high friction applications in a range

Learn more?

Check out our Coating page or download the Coating Guide

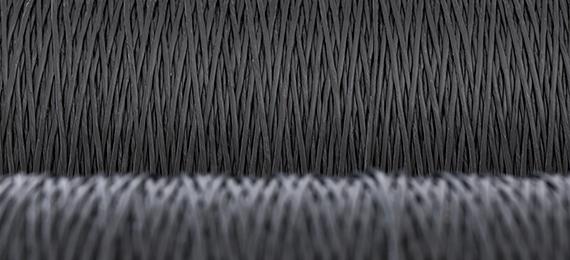

Key Features of Bondcoat™

  • Proprietary coating formulations used to bond/adhere the Carbon fiber to another surface
  • Helps fabric ends from pulling apart from the other ends
  • Created for applications where an untreated fiber does not have the ability to provide the appropriate amount of bonding charac- teristics to another material
  • Provides adhesion to another fiber or sub- strate without impacting other performance properties
  • Also used to better secure the fiber to the resin matrix it is introduced into
  • Rely on Bondcoat to pass industry standard “burst” tests or stringent delamination analysis

Learn more?

Check out our Coating page or download the Coating Guide

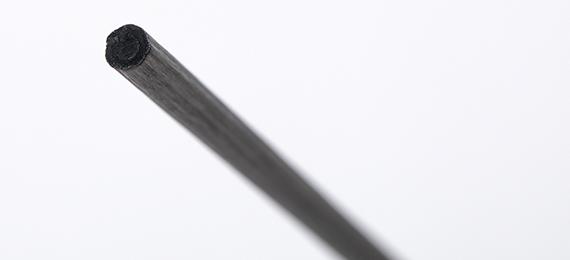

Key Feature of Carbon Fiber Pultruded Rod

  • Increased strength and modulus compared to traditional FRP
  • Reduce diameter without sacrificing strength or modulus

Learn more?

Check out our Pultrusion page or download the Pultrusion datasheet

Chemical Resistance to Acid: Information here.
Chemical Resistance to Alkali: Information here.

Carbon Fiber Advanced Processing Data

Standard Modulus

High Modulus

* Equilibrium moisture regain @ 55% RH    ** Creep @ 40%-58% ultimate tensile strength    *** Shrinkage in dry air @ 177 C for 30 minutes

This data is provided for informational purposes only, and does not constitute a specification. FIBER-LINE makes no warranty, express or implied, that the product conforms to these values. Contact your FIBER-LINE representative for exact product details which conform to your specific requirements.
